In enterprise DevOps workflows, it’s common to organize your codebase into multiple repositories—some storing reusable components like Terraform modules, others handling environment-specific infrastructure deployments. These repositories may live within the same Azure DevOps project, or across different projects in the same organization.

By default, Azure DevOps pipelines have seamless access to other repos in the same project, but things get trickier when you need to access a repo across project boundaries—especially during automation.

This article explores how to securely configure cross-repository access in Azure DevOps, using a practical example where a Terraform working directory pulls modules from a shared module repository. We’ll cover supported authentication methods, access control, and key security settings you must configure to make this work.

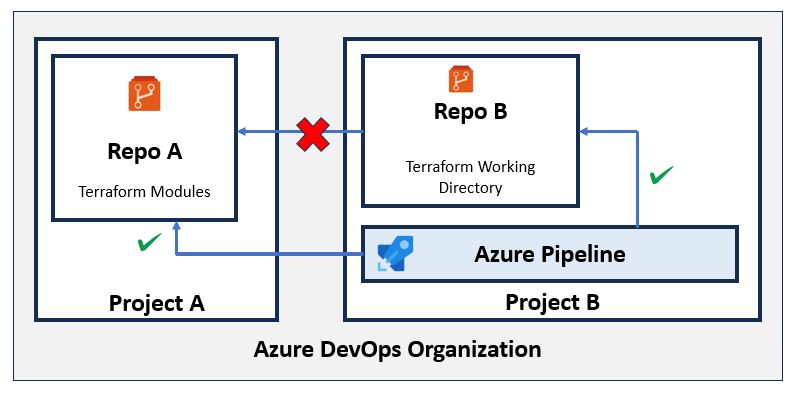

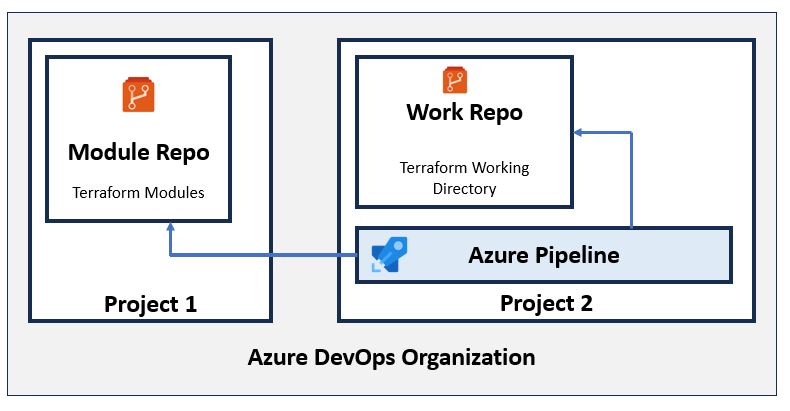

🧩 Scenario: Two Repos, Two Projects, One DevOps Org

Goal: Call Terraform modules from Project1/ModuleRepo while running a pipeline in Project2/WorkRepo.

🚧 The Real Challenge

Azure DevOps does not allow pipelines to access resources in another project by default, even within the same organization.

So while Git operations within a single project work seamlessly, cross-project operations require a few critical configuration changes.

📦 Referencing a Terraform Module in Another Repo

module "network" {
  source = "git::https://dev.azure.com/YourOrg/Project1/_git/ModuleRepo//network?ref=main"
  vnet_name = "prod-vnet"
  address_space = ["10.1.0.0/16"]
}

Tip: For production, pin to a tag or commit hash rather than main.

Note:

• The source path format is the same whether the module is in the same project or a different one.
• It is the access permissions and authentication mechanism that differs.

🔐 Understanding Git Authentication in Azure DevOps Pipelines

Can we use a Service Principal or Managed Identity?

❌ No. Azure Repos Git does not support Azure AD token-based authentication for Git operations. Even if permissions are assigned, Git clone/pull won’t work with a service principal or managed identity.

✅ Supported Git Authentication Methods

🛠️ Setting Up Cross-Project Access (Step-by-Step)

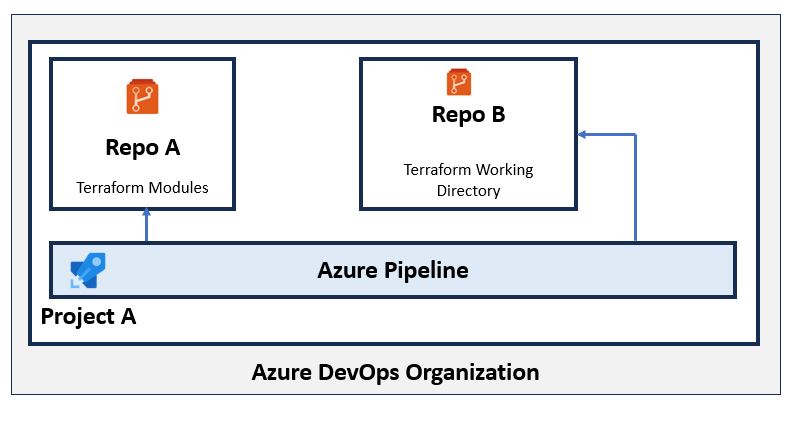

Important: If your pipeline and target repo are in the same project, most of the following steps are not required. Azure DevOps pipelines have implicit access to other repos in the same project.

If accessing a repo in a different project, follow these steps:

✅ Step 1: Disable Job Scope Restriction

In Project2 (where the pipeline runs):

• • Go to Project Settings → Pipelines → Settings
  • Uncheck “Limit job authorization scope to current project for non-release pipelines”

✅ Step 2: Grant Repo Read Permission

In Project1 → ModuleRepo:

• • Go to Project Settings → Repositories → ModuleRepo → Security
  • Add identity:
    • Project2 Build Service (Project2) or
    • Project Collection Build Service (YourOrg)
  • Set Read = Allow

✅ Step 3: Enable OAuth Token in Pipeline

• • In your pipeline → agent job settings
  • Check “Allow scripts to access OAuth token”

✅ Step 4: Configure Git in the Pipeline

steps:
- script: |
    git config --global url."https://$(System.AccessToken)@dev.azure.com".insteadOf "https://dev.azure.com"
  displayName: Setup Git Auth
  env:
    System_AccessToken: $(System.AccessToken)

What Does This Git Config Do?

⚠️ Important: Never echo this token. It auto-expires after the pipeline run.

✅ Final Pipeline YAML Snippet

trigger:
- main

pool:
  vmImage: ubuntu-latest

steps:
- checkout: self

- script: |
    git config --global url."https://$(System.AccessToken)@dev.azure.com".insteadOf "https://dev.azure.com"
  displayName: Setup Git Auth
  env:
    System_AccessToken: $(System.AccessToken)

- task: TerraformCLI@0
  inputs:
    command: 'init'

- task: TerraformCLI@0
  inputs:
    command: 'apply'
    environmentServiceName: '<Azure Service Connection>'

🔁 Behavior Comparison

🔐 Understanding System.AccessToken: Lifecycle and Security

🧬 What Is It?

• • Short-lived OAuth token generated by Azure DevOps
  • Valid for the duration of the current pipeline
  • Used for Git access and DevOps REST APIs

🕒 Token Lifecycle

✅ System.AccessToken is secure, ephemeral, and the preferred method for Git access in Azure DevOps pipelines.

Summary

✅ Accessing Repos in the Same Project

• • Pipelines can access other repos in the same project by default.

  • No need to disable any settings or grant explicit permissions.

  • System.AccessToken works out of the box for Git operations.

  • Use checkout: none and Git URL in module source if you don’t want automatic checkout.

  • Still need to enable “Allow scripts to access OAuth token” in pipeline settings.

🔐 Accessing Repos in a Different Project

• • • Pipelines do not have access to repos in other projects by default.
    • You must:
      • • Disable “Limit job authorization scope to current project” in the pipeline project settings.
        • Grant Read permission on the target repo to the pipeline identity (e.g., Project2 Build Service or Project Collection Build Service).
    • Enable “Allow scripts to access OAuth token” in the pipeline agent settings.
    • Use System.AccessToken for Git authentication by configuring Git:

git config --global url."https://$(System.AccessToken)@dev.azure.com".insteadOf "https://dev.azure.com"

• During terraform init, Git will clone the module repo, and the pipeline identity must be authorized to access it.
